Palisade Fencing & Gates
We supply, install or just deliver for you to install yourself.

Link to our Online Enquiry Form

•

Deterrent fencing security.

•

Quality heavy duty gates any size.

•

Robust and easy to assemble.

•

Supplied galvanised for long term weather protection.

•

Can be supplied Powder Coated to almost any colour.

Palisade security fencing is the one most widely chosen, and is very popular with Insurance companies. The fencing offers a practical and economical way to control and restrict access to your property for a cost effective price. It is available in various top designs, in height and thicknesses to suit the requirements of your property or pocket.

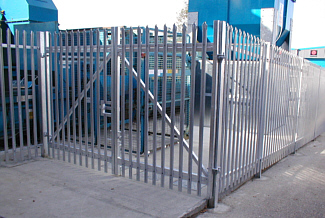

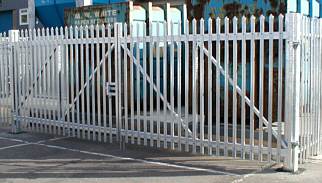

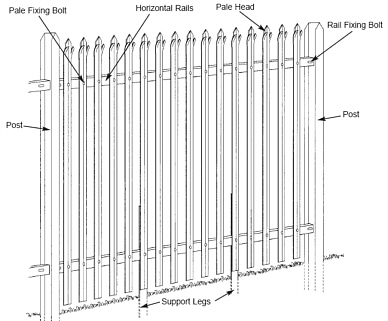

Typical Palisade Fence & Gate

Pale Profiles and Thicknesses
'D' Section	'W' Section

3.0mm for General Purpose use 3.5mm for Security use 4.0mm for High Security use	2.0mm for Light Duty use 2.5mm for General Purpose use 3.0mm for Security use

Section requirements for fence heights

Fence Height (mm)	Horizontal Rail Angle Section	Posts			Support Feet
Fence Height (mm)	Horizontal Rail Angle Section	Recommended R.S.J. Size	Length mm	Centres mm	No Per Bay	Length mm
1800	45 x 45 x 6	102 x 44 x 7.4	2400	2750	1	455
2000	45 x 45 x 6	102 x 44 x 7.4	2625	2750	2	455
2100	45 x 45 x 6	102 x 44 x 7.4	2725	2750	2	455
2400	45 x 45 x 6	102 x 44 x 7.4	3125	2750	2	610
3000	50 x 50 x 6	102 x 44 x 7.4	3925	2750	2	610

Pale Tops
Triple Point	Single Point	Round	Round & Notched

Installation of Palisade fencing is made easier by pre-fabricated cross rail sections that are drilled to space pales correctly. Cross Rails and Pales are fitted with domed head shear nuts and bolts, which snap off at a designed torque setting, offering maximum security for the fencing.


		The fencing can be supplied in kit form for easy self installation. Posts ideally are concreted into the ground for maximum fence strength, however, bolt down posts can also be supplied. Pre-fabricated gates can also be supplied by us.

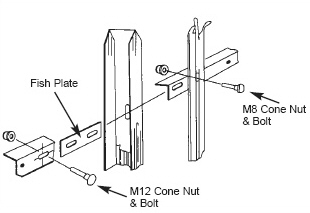

Shear Nut & Bolt

To discuss your requirements - please contact us.
